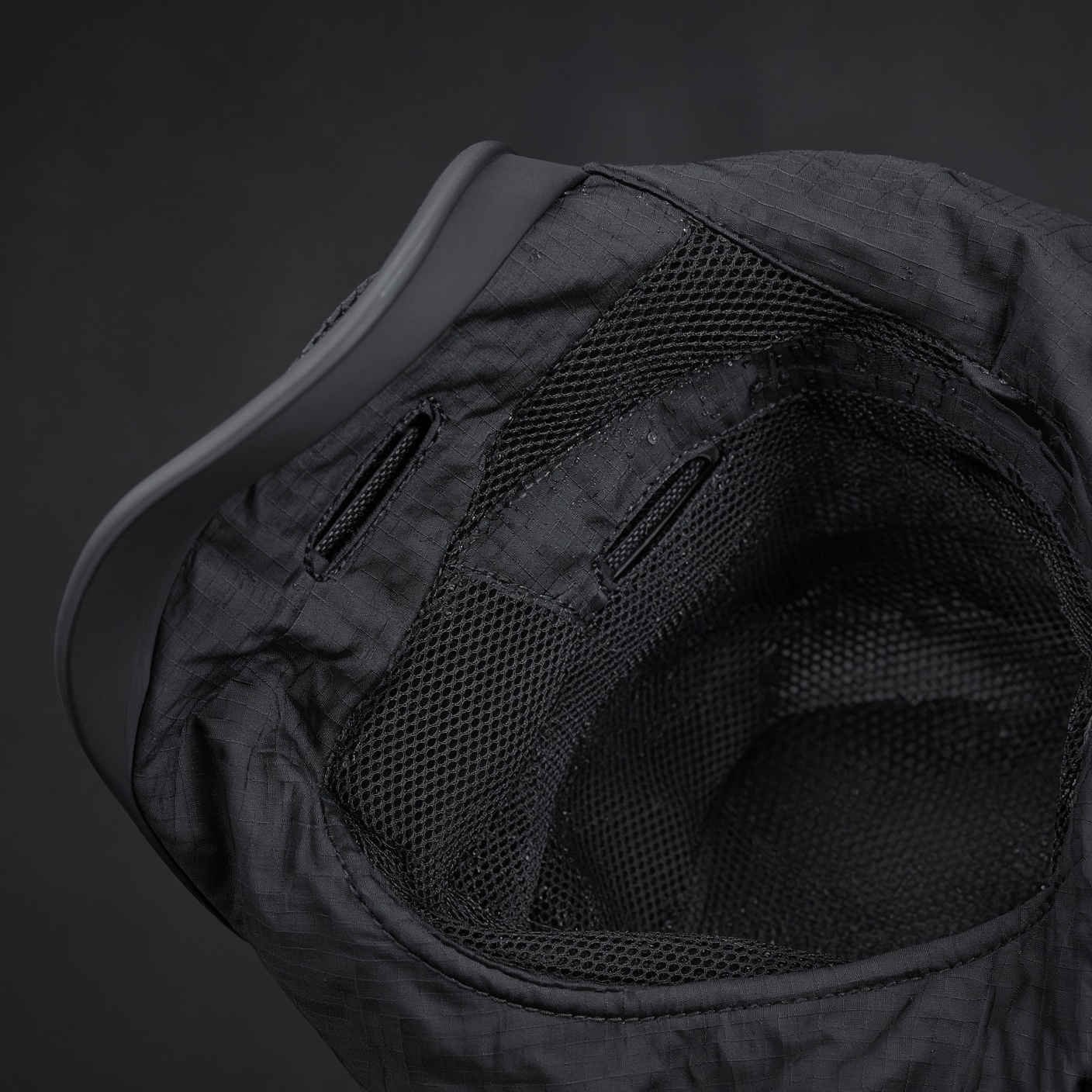

Head-first
Climate hood
Eight to twelve litres of chilled air a minute, aimed at the temples and nape. Cooling the head is the shortest path to keeping a body at work. Open face, hard-hat, or full visor.
Personal AC suit
Climate that lasts a shift.
A hooded cooling suit for personnel who work 6 to 8 hours in heat. Chilled air at the head, a closed liquid loop on the torso, and a belt pack that holds the day.
6–8 h
Rated backup
Head-first
Hood climate
4.1 kg
Worn system
COP 2.1
Belt compressor
Shift planner
Hold 6 to 8 hours. See it before you kit up.
Rated backup is a warehouse day at 33 °C, moderate work, open hood, Shift 6 pack. Heat, load, and hood drag eat the clock. Tune it here.
Personnel post
33 °C
22 °C
Runtime on this kit
7.4h
Shift locked
Inside the 6–8 hour rated window.
0 h6–8 rated10 h
- Electrical load
- 53 W
- Thermal cooling
- 92 W
- Hood
- Open climate
- Worn mass
- 4.5 kg
Runtime is pack watt-hours × 0.91, divided by compressor, pump, and control load. The compressor scales with the gap between ambient and comfort, then with workload, hood drag, and intensity.
The suit
Hood. Loop. Pack.
Personal AC is only useful if it lasts the shift and stays on the body. RIME splits the load: climate at the head, liquid on the torso, power on the belt.
Closed circuit
Torso loop
Eighteen metres of 2.5 mm silicone micro-tube in the vest lining. Water-glycol at 8 °C supply, worn under or as the work layer. No ice packs. No freeze-thaw cycle.

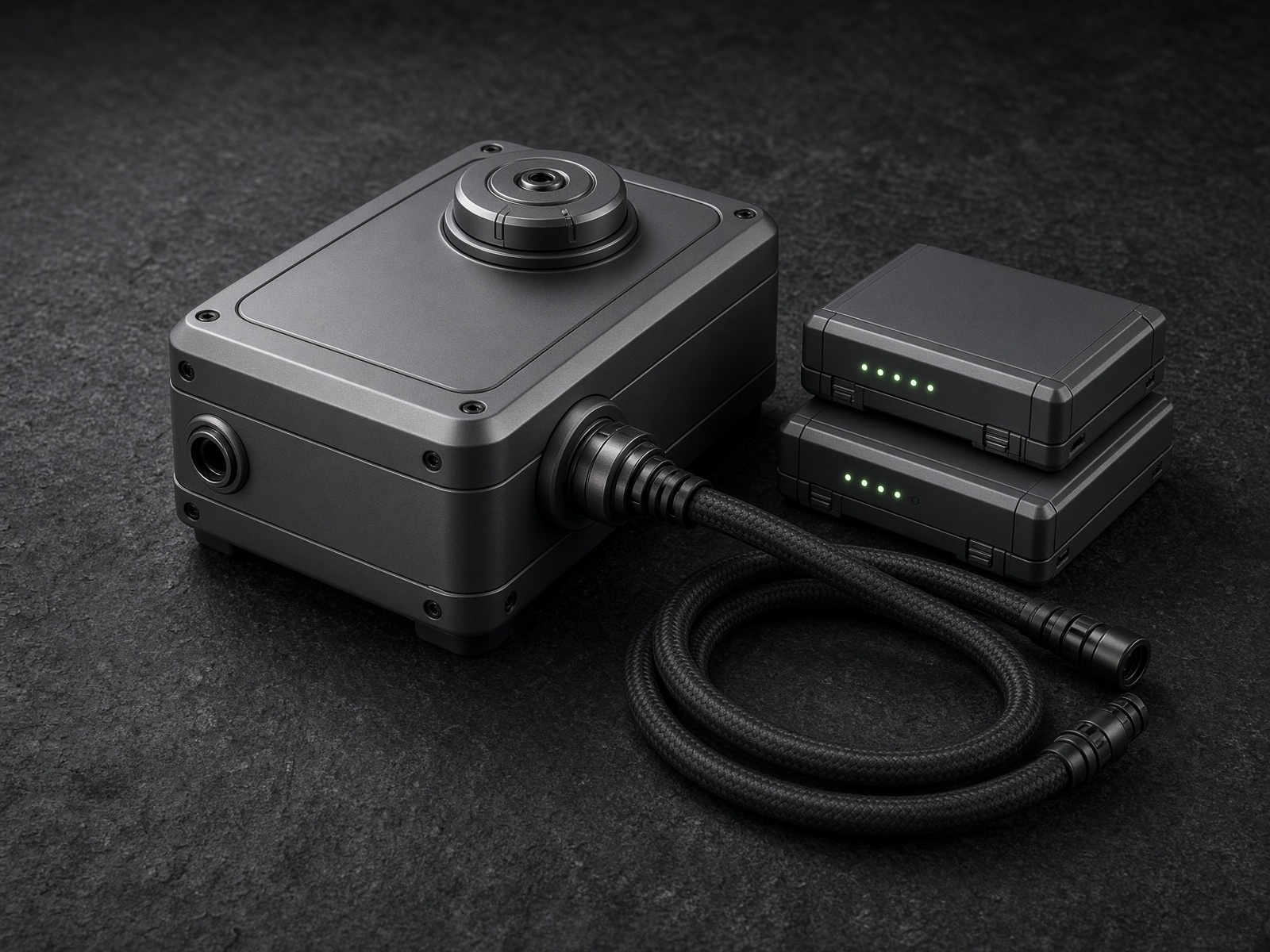

Shift battery
Belt pack
A miniature rotary compressor on the belt, COP 2.1. Dual hot-swap packs: 432 Wh for a rated six hours, 576 Wh for eight. Tool-free. Overnight charge on 65 W USB-C PD.
Kit
Spec the suit for the post.
Size, shell, hood, and pack. Runtime follows the shift you set above.
- Runtime
- 7.4 h
- Worn mass
- 4.5 kg
Specs
Built around the shift, not the lab bench.
| Rated runtime | 6–8 hours at 33 °C, moderate work, open hood, Shift 6 |
|---|---|
| Thermal cooling | 180–280 W (COP 2.1) |
| Electrical load | 48–90 W typical |
| Shift 6 pack | 432 Wh NMC · 1.55 kg · 2.4 h charge at 65 W |
| Shift 8 pack | 576 Wh NMC · 2.08 kg · 3.1 h charge at 65 W |
| Worn system | 4.1–4.9 kg including suit, hood, compressor, pack |
| Hood airflow | 8–12 L/min chilled air to temples and nape |
| Torso loop | 18 m × 2.5 mm silicone, water-glycol, 8 °C supply |
| Compressor | Belt-mounted rotary, hot-swap dual pack |
| Noise at ear | 32 dB with hood ducts |
| Ingress | IP54 pack and compressor |
| Ambient range | 18–48 °C |
| Sizes | XS–XXL unisex pattern |
| Shells | Graphite, Ice, Sand, Night |
